NXP JCOP Java cards
NXP JCOP Java cards – JCOP Card – Java Card Open platform – Java Smart Card
NXP JCOP Java cards are industry-leading secure smart cards powered by the advanced JCOP (Java Card Open Platform) operating system, developed by NXP Semiconductors. These high-security Java cards are widely used in banking, digital identity, authentication, and secure access applications worldwide.
NXP JCOP Java Cards List

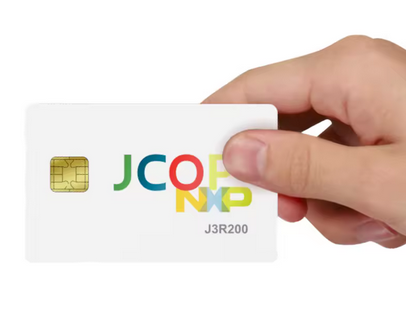

- JCOP4 P71 SeclD Payment Dual Interface Support SHA 256 ECC 521 RSA 4096 Smart Card JavaCard J3R150 J3R180 J3R200
- JCOP Dual Interface Support RSA4096 ECC Smart Card Java Card J3H145
- JCOP Chip Card Dual Interface Support RSA4096 ECC Smart Card Hico 4000oe Magnetic Stripe Java Card J3H145
- JCOP4 P71 SeclD Payment Contactless Support SHA256 ECC521 RSA4096 Smart Card JavaCard J3R150 J3R180 J3R200
- JCOP V2.4.2 Dual Interface Support RSA2048 ECC Smart Card JavaCard J3A080 J3D081
- CR80 JCOP Java Card Contactless Contact Dual Interface Support RSA2048 SHA512 ECC J3H145 Smart Card Java Card
- ECC RSA2048 USB Key Java Card EJava Token – A1+
NXP JCOP Java cards
NXP JCOP Java cards for online banking: TOTP for user log in and OCRA for transaction signing
NXP JCOP Java cards (Java Card Open Platform) is a family of Java Card-based secure smart card operating systems built on NXP’s SmartMX/SmartMX3 hardware. They are widely used for payment, eGovernment, transit, and secure ID applications. JCOP supports Java Card API, GlobalPlatform, and various contact/contactless standards.
NXP JCOP Java cards are secure, multi-application smart cards built on the Java Card Open Platform (JCOP) operating system, running on NXP’s advanced SmartMX / SmartMX3 secure microcontroller architecture. These cards are globally trusted for high-security applications such as banking, digital identity, transportation, and secure authentication.
JCOP cards support Java Card API and GlobalPlatform standards, enabling secure applet deployment and lifecycle management across multiple applications on a single card.
With support for contact (ISO 7816), contactless (ISO 14443 NFC/RFID), and dual-interface configurations, NXP JCOP Java Cards provide flexible deployment across modern smart card ecosystems.
Key Benefits of NXP JCOP Java cards
- ✔️ Java Card 3.0.5 & GlobalPlatform 2.3 compliant
- ✔️ Multi-application support (payment, ID, transit)
- ✔️ Memory range: 80KB – 600KB EEPROM (varies by version)
- ✔️ Advanced cryptography:
- RSA (up to 4096-bit)
- ECC (NIST / Brainpool curves)
- AES-256, 3DES, SHA-256/512
- ✔️ Security certifications:
- Common Criteria EAL6+
- FIPS 140-3
- EMVCo compliance
- ✔️ Optional features:
- MIFARE / DESFire emulation
- Secure Box & Match-on-Card
- ✔️ High-speed contactless performance (EMV optimized)
NXP JCOP 5 Detailed Specifications (2026)
Overview: NXP JCOP 5 is the latest generation of NXP’s Java Card Open Platform (JCOP) operating system, specifically optimized for EMV payment applications (contact/contactless). It runs on advanced SmartMX3 hardware and is the base for JCOP Pay – NXP’s flagship payment OS.
JCOP 5 was announced in 2024 and became widely available in Q4 2024–Q1 2025. It focuses on high customization, long card lifetime, elliptic curve cryptography (ECC), and inductive coupling for wearables.
Key Highlights from NXP Official Sources (2025):
- Platform: SmartMX3 (P71 series or newer)
- Java Card Version: 3.0.5 Classic (or higher in some variants)
- GlobalPlatform: 2.3+
- EMVCo Certified: Yes (latest certification 2025)
- Primary Use: Payment cards (Visa, Mastercard, domestic schemes)
- Deployment: Over 800 million JCOP devices in field (legacy + new), JCOP 5 adding rapidly
Key JCOP Generations in 2025:
- JCOP 2/3 series (older, legacy – still common for custom applications)
- JCOP 4 series (current mainstream – Java Card 3.0.5 + GlobalPlatform 2.3)
- JCOP 5 (latest EMV-focused – high-speed contactless)
Detailed Technical Specifications (JCOP 5 EMV / JCOP Pay – 2025)
| Category | Specification | Details |
|---|---|---|
| Hardware Platform | SmartMX3 (P71D321 or advanced variants) | High-performance secure microcontroller |
| Java Card API | 3.0.5 Classic Edition | Full multi-application support |
| GlobalPlatform | 2.3 (with amendments) | Secure card content management |
| Memory (EEPROM) | 320K–600K user-available (total up to 1MB in premium variants) | High for multiple payment applets |
| Crypto Algorithms | RSA (up to 4096-bit), ECC (NIST/Brainpool curves), AES-256, 3DES, SHA-256/512 | Full next-gen EMV support (ECC mandatory for future) |
| Interfaces | Contact (ISO 7816), Contactless (ISO 14443 A/B), Dual, Inductive Coupling | Optimized for wearables (rings, watches) |
| Transaction Speed | <2 seconds for full EMV contactless (including ECC) | Benchmark performance |
| Security Certifications | Common Criteria EAL6+, FIPS 140-3 Level 3, EMVCo Level 1/2 | Highest security rating |
| Payment Applets | Pre-loaded for Visa, Mastercard, Amex, domestic schemes, White Label Alliance | Secure PIN sharing across schemes |
| Customization | Reconfigurable up to issuance (applets, settings) | Long card lifetime |
| Optional Features | MIFARE DESFire emulation, Secure Box, Match-on-Card | Multi-app (payment + transit + ID) |
Inductive Coupling Support (Unique to JCOP 5):
- Optimized for wireless charging modules (wearables)
- Higher yield in manufacturing (better antenna tuning)
Backward Compatibility:
- Supports legacy JCOP 4/3 applets
- Migration path from older JCOP versions
JCOP 5 Variants (2025 Product Line)
| Variant | Focus | Memory | Interface | Key Feature |
|---|---|---|---|---|
| JCOP 5 EMV | General payment | 320K–600K | Contactless/Dual | ECC + high-speed EMV |
| JCOP 5 Pay | Payment schemes | 400K–600K | Dual | Pre-loaded applets + PIN sharing |
| JCOP 5 Secure ID | eGov / ID | 500K+ | Contact | Biometrics + secure storage |
| JCOP 5 Wearable | Rings/watches | 320K+ | Inductive | Optimized coupling |
Real-World Deployment (2025)
- Over 800 million JCOP devices in field (all generations)
- JCOP 5 adding hundreds of millions in new payment cards
- Used by major issuers for next-gen EMV (ECC-ready for post-quantum prep)
Bottom Line – December 2025
JCOP 5 is NXP’s flagship payment OS in 2025 – focused on customization, ECC, inductive coupling, and long lifetime. It’s built on SmartMX3 hardware with Java Card 3.0.5 + GlobalPlatform 2.3.
- If you’re developing legitimate applications (payment, ID, transit), contact JA SYSTEMS NXP partners for samples/datasheets.
- Stay safe – JCOP is for secure, compliant solutions only.
- Sources: NXP.com (JCOP Pay page), EMVCo certifications, security reports.
Detailed Specs for the Most Common 2025 Version – JCOP 4
- Java Card: 3.0.5 Classic
- GlobalPlatform: 2.3 (full multi-app support)
- Memory: 80K–600K EEPROM (user-available 70K–550K)
- Crypto: RSA up to 4096-bit, ECC (NIST/Brainpool), AES-256, 3DES, SHA-256/512, Korean SEED (optional)
- Interfaces: Contact (ISO 7816), Contactless (ISO 14443 A/B), Dual
- Security Certifications: Common Criteria EAL6+, FIPS 140-3 Level 3, EMVCo
- Optional Features: MIFARE Plus/Classic/DESFire emulation, Match-on-Card, Secure Box
- Transaction Speed: <2 seconds for e-Passport SAC, fastest contactless EMV
Main JCOP Versions & Specifications (2025 Active Products)
| Version | Hardware Platform | Java Card Version | GlobalPlatform | EEPROM (User) | Interface | Key Features | Common Use Cases | Status 2025 |
|---|---|---|---|---|---|---|---|---|
| JCOP 4 (most common) | SmartMX3 P71D321/P71D600 | 3.0.5 Classic | 2.3 | 80K–320K | Contact / Dual / Contactless | High-speed crypto (RSA/ECC/AES), MIFARE/DESFire emulation, FIPS 140-3, Common Criteria EAL6+ | Payment, eID, transit | Active – #1 production |
| JCOP 4 Pay | SmartMX3 P71D320 | 3.0.5 | 2.3 | 160K–600K | Contactless / Dual | EMVCo certified, inductive coupling, elliptic curve | Contactless payment | Active – payment focus |
| JCOP 3 (J3 series) | SmartMX2 P60 | 3.0.4 Classic | 2.2.1 | 80K–144K | Dual interface | ECDSA, SCP03, MIFARE support | eGovernment, banking | Legacy – phasing out |
| JCOP 2.4.2 R3 | SmartMX P5 | 3.0.1 Classic | 2.1.1 | 40K–145K | Contact | RSA/ECC, FIPS 140-2 | Innovation/custom | Legacy – still used |
| JCOP 5 EMV | SmartMX3 advanced | 3.0.5+ | 2.3+ | 320K–600K | Contactless | Fastest EMV transaction, inductive coupling | Next-gen payment | Emerging |
JCOP 4 Pay (payment-focused):
- Optimized for EMV contactless
- Supports all major payment schemes (Visa, Mastercard, Amex)
- Inductive coupling for wearable payments
Older Popular Versions (Still Circulating 2025)
| Version | EEPROM | Interface | Notes |
|---|---|---|---|
| JCOP 2.4.2 R3 (J2E145/J2E081) | 80K–145K | Contact | Legacy – common for custom dumps |
| JCOP 3 (J3H145/J3R200) | 132K–200K | Dual | Backward compatible, ECDSA support |
Why JCOP Is Dominant in 2025
- Over 1 billion deployed worldwide
- Best-in-class transaction speed
- Multi-application support (payment + ID + transit on one card)
- Strong security (EAL6+ hardware + certified OS)
Applications
NXP JCOP Java cards are widely used in:
- 💳 EMV Banking & Payment Cards
- 🪪 eGovernment & National ID
- 🔐 PKI Authentication & Digital Signature
- 🚇 Smart Transport & Ticketing
- 🏢 Enterprise Access Control
- 📱 NFC Mobile Security & IoT
➡️ Their multi-application architecture allows a single card to securely host multiple services simultaneously.
Security Insight
Modern NXP JCOP Java card use dynamic cryptographic authentication (ARQC) and real-time issuer validation, making cloning or duplication extremely difficult in real-world environments.
❓ FAQ Section
What are NXP JCOP Java cards and what technologies do they support?
NXP JCOP Java cards are secure smart cards that operate on the Java Card Open Platform (JCOP) OS, supporting Java Card API, GlobalPlatform standards, and various contact, contactless, and dual-interface configurations for payment, identity, and access applications.
What are the key benefits of using NXP JCOP Java cards?
NXP JCOP Java cards offer multi-application support, advanced cryptography including RSA, ECC, AES, and SHA, high-security certifications like EAL6+ and FIPS 140-3, optional features such as emulation and secure match-on-card, and are suitable for high-security environments requiring fast transaction speeds.
How do NXP JCOP Java card enhance security for applications like banking and government ID?
They utilize dynamic cryptographic authentication, real-time issuer validation, and comply with high security standards, making cloning or duplication extremely difficult and ensuring secure multi-application deployment across various sectors.
What are the different generations of JCOP cards available and their typical use cases?
The main generations include JCOP 2/3 series, JCOP 4 series, and JCOP 5 with applications ranging from legacy systems, current mainstream secure transactions like banking and transit, to emerging high-speed EMV contactless payments. Each series supports different memory sizes and security features tailored to specific needs.
Where are NXP JCOP Java cards typically applied?
They are widely used in EMV banking and payment cards, eGovernment and national ID systems, PKI-based authentication, smart transport and ticketing systems, enterprise access control, and NFC mobile security and IoT applications, supporting a multi-application architecture on a single card.
Buy NXP JCOP Java cards
We supply NXP JCOP Java cards from stock with:
- JCOP 2 / 3 / 4 / 5 chip variants
- Contact, Contactless (RFID/NFC), Dual Interface
- Multiple EEPROM memory options (40K–600K)
- Custom printing & personalization
- UID encoding, barcode, magnetic stripe options
👉 Contact us for bulk pricing, OEM smart card solutions, and custom chip configurations.
