Biometric Fingerprint Smart Card – Secure Authentication & Access Control Cards

BioCard Biometric Fingerprint Card – Product descriptions from the supplier (JA SYSTEMS)

BioCard Features

• Fingerprint verification, no PIN needed
• Fingerprint information match-on-card, user’s biometric data will never leave the card
• Fingerprint enrollment could be done by end users, zero-modification for banks and merchants
• Fingerprint data stored inside MCU
• Fingerprint storage & matching conducted inside MCU
• Dual-interface ID1 card
• No battery inside
• Support FIDO2 & U2F applet
• Dual Interface / Contactless card supported
• Easy fingerprint registration at anywhere by utilizing
• exceptional BLE technology and remote authentication solution
• FIDO2 Compatible
• IDEX fingerprint sensor
• Note: The product image is for reference only! The actual card printing design may be different to this. It depends on the stock state. Thanks for understanding.

BioCard Specification

Product name	Biometric Fingerprint Smart Card
Chip Certification	CC EAL6+, EMVCo
Physical Storage
NVM Type	Flash(SOLID FLASH)
Code Area	FLASH
User NVM Size	92.6K
User RAM size	4.78K
Algorithm
RSA 2048	Yes
AES	Yes
SHA-1	Yes
SHA-256	Yes
SHA-384	Yes
SHA-512	Yes
MD5	No
3DES (ECB, CBC)	Yes
HMAC	No
ECC(FP_192)	Yes
ECC(FP_224)	No
ECC(FP_256)	Yes
ECC(FP_384)	Yes
ECC(FP_521)	No
ECC(F2M)	No
KOREAN SEED	No
Standard Compliance
Java Card™ 2.2.2	Yes
Java Card™ 3.0.4	Yes
Java Card™ 3.0.5	No
GlobalPlatform 2.3.1	Yes
Communication Protocol
ISO7816 T=0	Yes
ISO7816 T=1	Yes
ISO14443 T=CL Type A	Yes
ISO14443 T=CL Type B	Yes
SWP	No
Mifare	Yes
JCRE Features
APDU Buffer Size	261 bytes
Transaction Size	384 bytes
Extended APDU	Yes
RMI	No
Logical Channels	4
Garbage Collector	Yes
Applet Deletion	Yes
Sensor Features
Fingerprint Type	IDX_3200
Communication Interface for Enroll	Bluetooth
Communication Interface for Match	Bluetooth / CL
Number of Fingerprint Enroll	8
Maximum number of Stored Fingerprints	8
FRR	3 / 100
FAR	1 / 10000
Battery
Battery	No

Fingerprint Card is a Smart Card embedded with flexible biometric sensor and strong matching chip, where:

• Biometric Sample Capture (Enrollment / Verification)
• Minutiae Template Extraction
• Template Storage
• Templates Matching

is performed within the Biometric Fingerprint Smart Card, therefore the fingerprint data will never leave the card.

Biometric Fingerprint Smart Card is the perfect combination of portability and security for payment and access control.

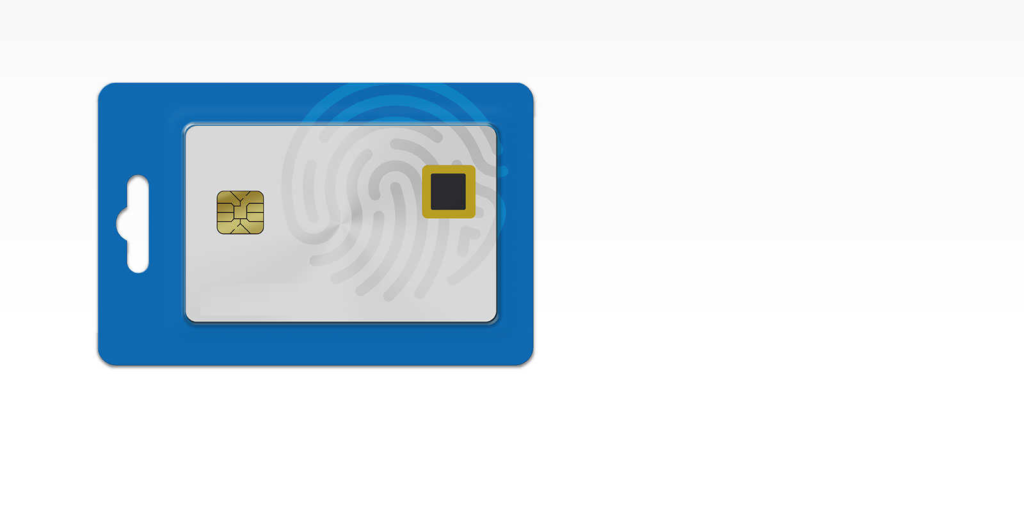

Fast & Secure BioCard Biometric Fingerprint Card

Unlock your world with your BioCard Biometric Fingerprint Card.

• BioCard Biometric Fingerprint Power Card
• ISO7810 ID-1 Size
• LED Indicator
• Secure Element
• MCU
• Contactless Antenna
• Fingerprint Sensor & Storage

Top grade protection

By embedding the world leading Biometric Fingerprint Card module, the fingerprint card can provide the user a high rank secured experience within a blink of the time.

Sensitive data stays inside the card

Once registered, user’s fingerprint data will be securely stored and matched inside the BioCard Biometric Fingerprint Card. It will not reveal to any person or software about the user’s sensitive biometric data.

Widely used in multiple roles

The BioCard Biometric Fingerprint Card authentication will be considered as additional secure element in the existing scenario. The card can be used in many ways including access control, banking & payment, authentication systems etc.

Easy to deploy

The card can be deployed in any existing system with fully-qualified ISO 14443 contactless reader.

Just got your card?

Learn how to enroll and authenticate with just your fingerprint.

Customization options

• Customized logo (Min. order: 500 pieces)
• Customized packaging (Min. order: 500 pieces)

Supplier’s customization ability

• Minor customization
• Drawing-based customization
• Sample-based customization
• Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
